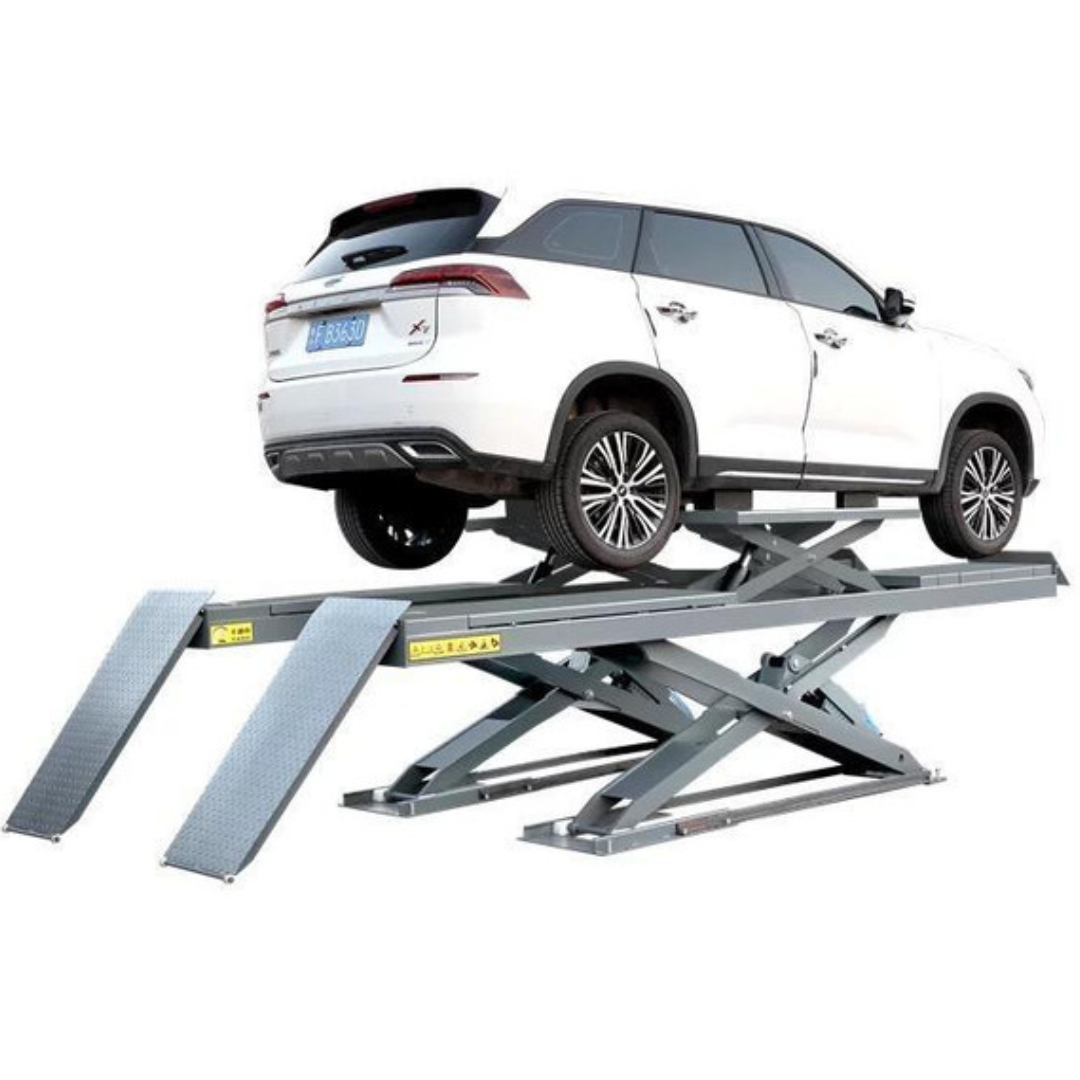

Alignment Scissor Lift Hoist (4T/5T/6T)
Alignment Scissor Lift Hoist (4T/5T/6T) - Image 2
Alignment Scissor Lift Hoist (4T/5T/6T) - Image 3

Alignment Scissor Lift Hoist (4T/5T/6T)

Call for price

Features:

  • In ground installation or above ground installation with optional drive on ramp
  • Long sliding plate and adjustable turntable positions accommodate deferent kinds of wheelbases
  • Pneumatic safety locking system
  • The great planeness of runways is perfect for high accurate wheel aligning
  • Extensible 2nd lifting platform
  • Self lubricated bushing and bearing
CapacityPRICE (Taxes not incl.)
9000LBS$ 8,780
10000LBS$ 9,850
12000LBS$ 11,699



Category:

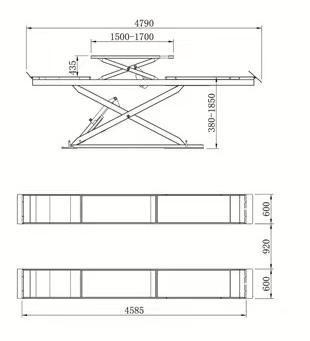

SPECIFICATIONS:



Model: LST-JS450 (9000LBS)

Max.lifting capacity
4000 kg/8818.49 lbs
Lifting height73 in
Min height15 in
Jack length59-67 in
Jack17 in
Lifting time60s
Platform length188.5 in
Platform width23.6 in
Motor power220v-2.2kw
Rated oil pressure20Mpa
Air pressure0.6-0.8Mpa



Model: SR-DZ45A (10000LBS)

Max.lifting capacity
4500 kg/9920.802 lbs
Lifting height73 in
Min height15 in
Jack length59-67 in
Jack17 in
Lifting time60s
Platform length188.5 in
Platform width23.6 in
Motor power220v-2.2kw
Rated oil pressure20Mpa
Air pressure0.6-0.8Mpa



Model: LST-JS450 (12000LBS)

Max.lifting capacity
5500 kg/12125.42lbs
Lifting height73 in
Min height15 in
Jack length59-67 in
Jack17 in
Lifting time60s
Platform length188.5 in
Platform width23.6 in
Motor power220v-2.2kw
Rated oil pressure20Mpa
Air pressure0.6-0.8Mpa



With 1 year warranty for all the parts*
